SynStitch AI Enhances Ultrasound Imaging

2025-06-21waddelma2 minutes read
AI
Medical Imaging
Ultrasound

The Challenge of Limited Ultrasound Views

Ultrasound imaging is a vital tool for peering inside the human body, offering a safe and effective way to visualize internal structures. However, a common limitation is that each individual ultrasound image captures only a small, localized area. To gain a comprehensive understanding of a larger organ or region, medical professionals often need to combine, or "stitch," multiple ultrasound images together. This process is similar to creating a panoramic photograph. The difficulty arises when these images have only partial overlap or present slightly different perspectives of the same anatomical part, making accurate alignment a significant challenge.

Introducing SynStitch A Novel AI Solution

Researchers have developed an innovative solution called SynStitch, a new self-supervised learning method designed to stitch 2D ultrasound images together with greater effectiveness. This system cleverly learns how to merge images without needing vast amounts of manually labeled data, a common bottleneck in AI development.

How SynStitch Works Its Magic

SynStitch operates through two primary components:

  1. Synthetic Stitching Pair Generation Module (SSPGM): This ingenious module utilizes an advanced AI model known as ControlNet. The SSPGM takes a single ultrasound image and artfully generates a second, related image, creating a synthetic pair. Crucially, the exact spatial relationship between these two synthetically generated images is known.
  2. Image Stitching Module (ISM): The synthetic pairs created by the SSPGM are then used to train the ISM. This module learns the intricacies of how to accurately align and merge ultrasound images based on these perfectly matched examples.

Essentially, SynStitch first learns to create realistic, related ultrasound image pairs and then uses these pairs to teach itself how to perform high-quality stitching.

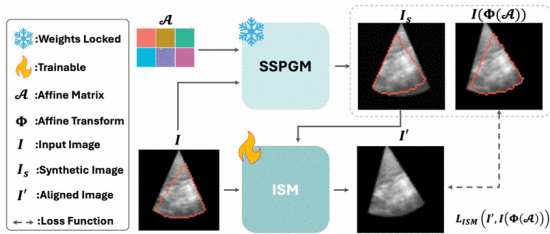

Diagram of SynStitch architecture and training process

Fig. 1. An overview of the SynStitch process, illustrating the training of the SSPGM to generate synthetic image pairs and the subsequent training of the ISM on these pairs.

Proven Results and Open Access

The SynStitch method was rigorously tested using kidney ultrasound images. The results were impressive, showing that SynStitch outperformed several leading existing techniques. It consistently produced stitched images that were clearer and more accurate, a finding supported by both visual inspection and quantitative data analysis.

For those interested in exploring the technical details or utilizing this technology, the project's code is openly available. You can access the SynStitch codebase on GitHub.
